Large UAV Parts Machining for Plant Protection Drone Components

Published date: June 10, 2026
Source: HTL CNC

Large UAV platforms and plant protection drones are becoming more specialized in agriculture, inspection, logistics testing and industrial field applications. As payload, vibration, chemical exposure and working time become more important to equipment designers, the structural parts inside these aircraft need to combine low weight, reliable assembly and repeatable manufacturing quality. For many custom projects, precision CNC machining remains a practical solution for large UAV parts, agricultural UAV components and drone sprayer assemblies that cannot be purchased as standard hardware.

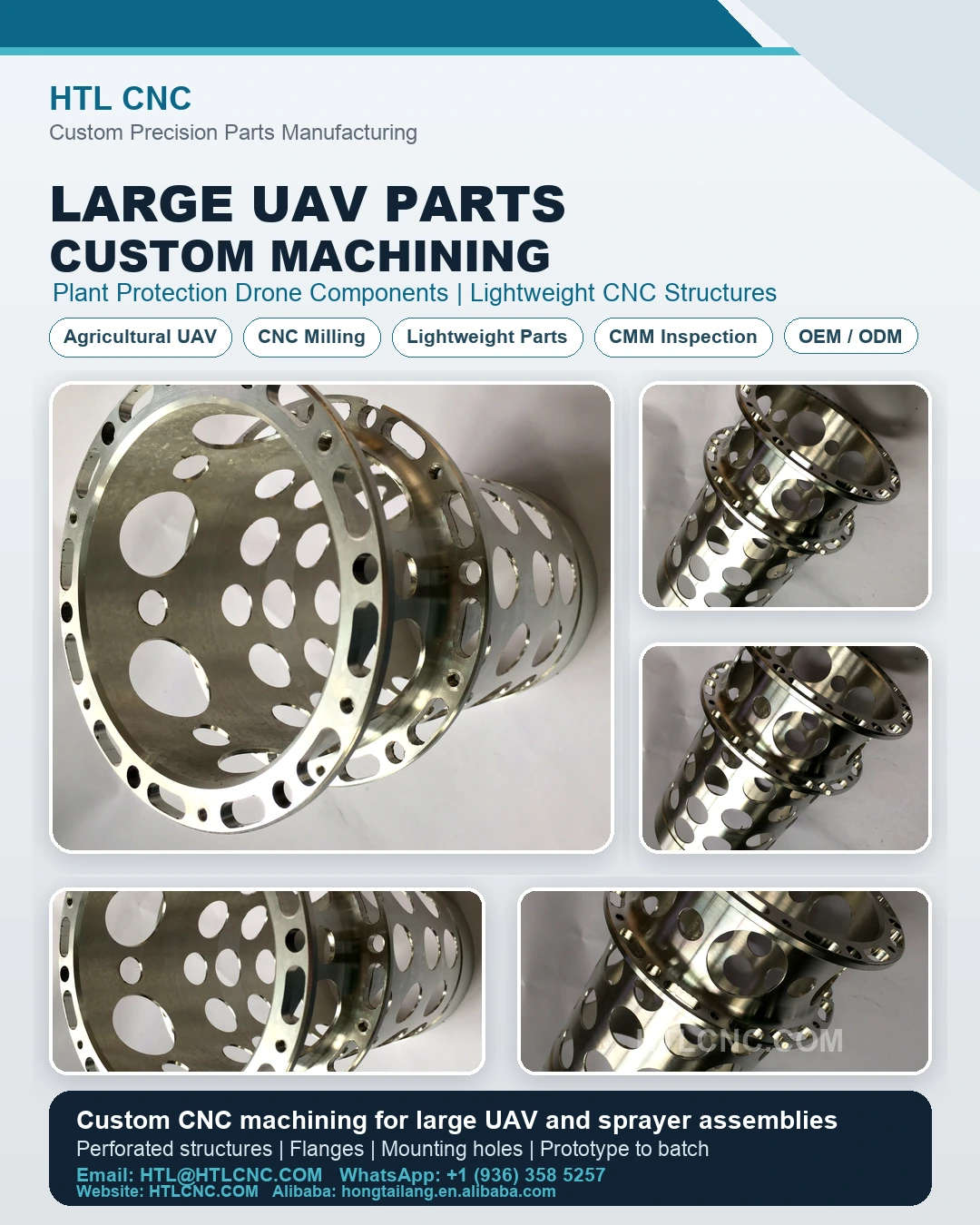

The component shown in this industry update is a typical lightweight cylindrical structure used in a large UAV-related assembly. It includes a perforated tube body, round and elongated lightening holes, flange rings, mounting holes, drilled features and thin structural walls. This type of part may be used as a custom frame, protective sleeve, rotor-related support, sprayer assembly component or equipment mounting structure depending on the customer's drawing and application. The important manufacturing idea is the same: remove unnecessary material while keeping enough rigidity for installation, alignment and service stability.

For plant protection drone components, weight control is especially important. Agricultural UAVs often need to carry liquid tanks, pumps, nozzles, batteries, sensors and flight control systems. Every metal component should be reviewed from the perspective of function, weight, strength and manufacturability. A lightweight perforated aluminum part can help reduce mass while preserving key mounting surfaces, but the open holes, flange features and wall thickness must be machined consistently. If the holes are uneven, the flange face is distorted or the mounting pattern is unstable, the final drone assembly may face vibration, alignment or installation issues.

CNC machining allows engineers to turn complex UAV designs into physical parts without mold tooling at the early stage. 3-axis CNC milling can create flat surfaces, pockets and drilled holes, while 4-axis and 5-axis machining can improve access to circular structures, side features and multi-angle hole patterns. CNC turning may be used for round interfaces, cylindrical surfaces and flange features before milling, drilling, tapping or deburring. For parts similar to the image, a suitable machining route may combine turning, milling, drilling, chamfering and inspection to control the complete geometry.

Large UAV parts and drone sprayer components are not judged only by appearance. Engineers and purchasing teams normally care about hole position, bolt circle accuracy, flange flatness, concentricity, wall thickness, burr control and the fit between mating components. Long rows of perforated holes also require stable process control because small errors can accumulate across the part. For OEM drone components, the machining supplier should understand how each feature supports assembly, not simply remove material from the blank.

Material selection depends on the customer's design requirement. Aluminum alloy is commonly selected for agricultural UAV and large drone structures because it offers a useful balance of machinability, weight and mechanical performance. Stainless steel, steel, brass, copper, magnesium alloy, PEEK and other engineering plastics may also be considered when corrosion resistance, strength, insulation, thermal behavior or chemical environment is important. HTL CNC can review 2D drawings, 3D models, samples and technical notes from a manufacturing point of view, while the final material choice should follow the customer's design and application requirements.

Surface treatment is another important topic for UAV parts used outdoors. Plant protection drones may work in humid, dusty or chemically exposed environments, so surface protection and cosmetic consistency can matter. Depending on the material and drawing, parts may require anodizing, hard anodizing, plating, passivation, polishing, sandblasting, laser marking or other post-processing. For lightweight perforated structures, the supplier should consider how finishing thickness, masking areas, threaded holes, sharp edges and cosmetic surfaces may affect final assembly.

Inspection is essential for custom UAV component production. CMM inspection, height gauges, thread gauges, pin gauges, calipers and visual inspection may be used according to the drawing. For large UAV accessories and plant protection drone parts, typical inspection points include bolt hole spacing, hole diameter, flange position, roundness, flatness, wall thickness, slot size and surface quality. Good inspection records help overseas buyers reduce assembly risk when parts are shipped for prototype testing, pilot production or repeat batch orders.

From a supply chain perspective, agricultural drone and industrial UAV projects often move through several stages: prototype sample, functional validation, small-batch testing and stable production. Custom CNC machining is suitable for this development path because drawings can be adjusted between versions, and the machining process can be optimized as the design becomes more mature. For overseas OEM customers, working with a CNC factory that can support prototype samples and batch manufacturing can help shorten development cycles and reduce communication cost.

International buyers may use different search terms for similar requirements. Some search for large UAV parts machining, while others use plant protection drone components, agricultural UAV parts, UAV sprayer parts, drone sprayer components, lightweight aluminum drone parts, CNC machined flanges, UAV mounting bracket machining, multi-axis CNC milling or OEM drone components. HTL CNC publishes industry news around these real manufacturing scenarios to help customers connect their drawings and RFQ requirements with suitable CNC machining solutions.

HTL CNC is a professional precision parts contract manufacturer located in Shenzhen, China. Our factory is equipped with 70 sets of CNC machining and inspection equipment, including five-axis, four-axis and three-axis CNC machining centers, CNC turning and milling compound machines, CNC lathes and three-dimensional inspection equipment. We provide drawing-based custom CNC machining services for drone components, auto and motorcycle parts, robot components, medical device parts, industrial equipment parts and other non-standard precision components.

For large UAV parts, plant protection drone components, agricultural UAV accessories, lightweight perforated aluminum structures, flange parts, mounting brackets or other precision CNC machined drone parts, customers can send 2D drawings, 3D files, samples, material notes, surface treatment requirements and expected quantities to HTL CNC. Our engineering team can review manufacturability, support prototype development and provide quotation support for small-batch and OEM custom manufacturing projects.
