Custom UAV Propeller Blade Grip Machining for Lightweight Drone Assemblies

Published date: June 8, 2026
Source: HTL CNC

As heavy-lift UAVs, agricultural drones, industrial inspection drones and unmanned research platforms continue to develop, the mechanical parts around the rotor system are receiving more attention from engineers and purchasing teams. A UAV propeller blade grip, drone propeller blade holder or rotor blade clamp is a small part of the complete aircraft, but it can influence assembly accuracy, vibration stability, lightweight design and long-term service reliability. For projects that cannot rely on off-the-shelf hardware, custom CNC machining is often the practical route from prototype validation to stable batch production.

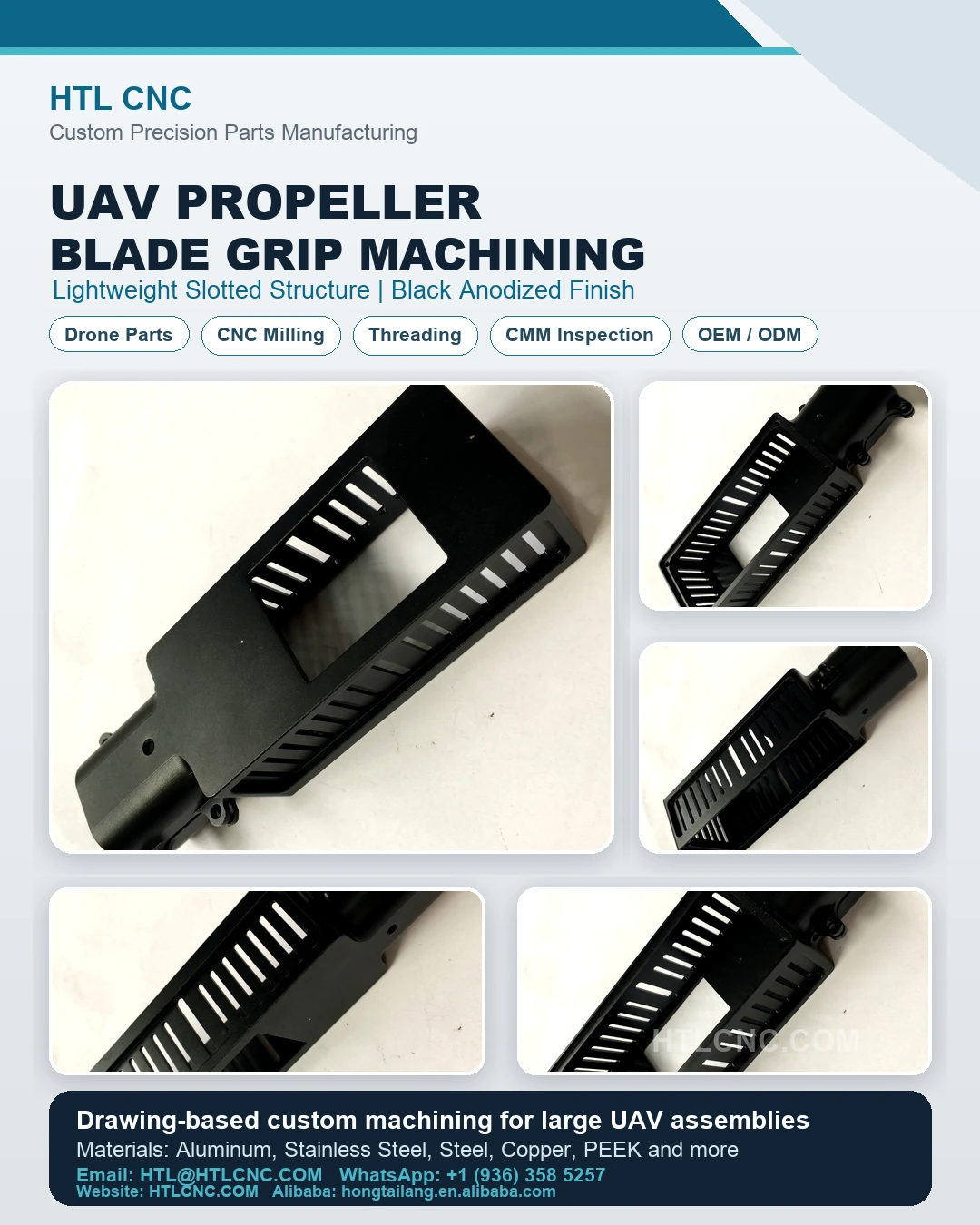

The part shown in this industry update is a typical drawing-based UAV component with a long lightweight structure, repeated slots, open windows, mounting holes and a black surface finish. This type of design is common in drone assemblies where weight reduction and structural rigidity need to be considered together. The long slotted areas help remove unnecessary material, while the surrounding ribs, mounting ears and cylindrical interface must remain strong enough for installation. For drone hardware developers, this balance between low weight and reliable mechanical strength is one reason precision CNC machining remains important for custom UAV components.

Unlike a simple bracket or sheet metal support, a custom UAV propeller blade grip may include several functional features in one part: a blade or shaft interface, hole patterns for fastening, threaded holes, side windows, chamfers, edge finishing and surfaces prepared for anodizing or other post-processing. Each feature may look straightforward on its own, but the complete part requires a stable machining sequence, suitable fixturing and controlled inspection. If the hole position, slot width, flatness or mating surface is not consistent, the final assembly can face adjustment problems during prototype testing or batch installation.

Multi-axis CNC machining is especially useful for these UAV parts because many features are distributed across different sides of the component. 3-axis CNC milling can handle many pockets, slots and flat surfaces, while 4-axis or 5-axis machining can reduce repeated clamping when the geometry becomes more complex. CNC turning or turn-milling compound machining may also be used when the design includes cylindrical interfaces, shaft-related areas or round mounting features. The final process route should always follow the customer's drawing, material specification, tolerance requirement and expected order quantity.

For lightweight UAV structural parts, aluminum alloy is widely selected because it offers a practical balance of machinability, weight and mechanical performance. In some projects, customers may also specify stainless steel, steel, brass, copper, magnesium alloy, PEEK or other engineering plastics depending on strength, corrosion resistance, electrical insulation, thermal performance or assembly environment. HTL CNC can review supplied 2D drawings, 3D models, samples and technical notes to support material selection from a manufacturing point of view, while the final material decision remains based on the customer's design requirements.

Surface treatment is another important part of UAV propeller grip manufacturing. Black anodizing or other black surface finishes are often requested for aluminum drone parts because they can improve corrosion resistance, appearance consistency and surface protection. However, surface finishing should be considered early in the process, not only after machining is completed. Coating thickness, masking areas, cosmetic surfaces, sharp edges, threaded holes and assembly fits may all be affected by post-processing. A good CNC machining supplier should understand how machining quality and finishing requirements work together.

Hole accuracy is one of the key inspection points for drone propeller blade holders and rotor assembly parts. Mounting holes and threaded holes must match the CAD model and the connected hardware. Repeated slots and open windows should also be controlled so that the component remains clean, consistent and suitable for assembly. For parts used in UAV structures, CMM inspection, calipers, height gauges, thread gauges and visual inspection can be applied according to the drawing. Critical features such as hole spacing, bore position, slot dimensions, flatness, chamfering and surface quality should be confirmed before shipment.

From a supply chain perspective, the UAV industry often requires flexibility. Startups, drone integrators, agricultural UAV companies, inspection equipment developers and research teams may begin with several prototype samples, then move to small-batch validation and later repeat orders. CNC machining can support this development path because it does not require mold tooling at the early stage, and the same machining data can be optimized as the project moves toward production. For overseas buyers, a supplier that can handle prototypes, small batches and drawing-based OEM production can help shorten the development cycle.

Search terms used by international buyers may vary widely for this type of part. Some buyers search for custom UAV propeller blade grip, while others use drone propeller blade holder, drone rotor blade clamp, UAV propeller mount, lightweight aluminum drone bracket, black anodized CNC part, CNC machined drone part or OEM UAV component. For this reason, HTL CNC continues to publish industry news and technical articles around real manufacturing scenarios, helping customers connect their RFQ drawings with suitable CNC machining solutions.

HTL CNC is a professional precision parts contract manufacturer located in Shenzhen, China. Our factory is equipped with 70 sets of CNC machining and inspection equipment, including five-axis, four-axis and three-axis CNC machining centers, CNC turning and milling compound machines, CNC lathes and three-dimensional inspection equipment. We provide custom CNC machining services for drone components, auto and motorcycle parts, robot components, medical device parts, industrial equipment parts and other non-standard precision components.

For custom UAV propeller blade grips, drone propeller blade holders, lightweight slotted aluminum components, black anodized CNC parts or other precision machined drone assemblies, customers can send drawings, 3D files, samples, material requirements, surface treatment notes and expected quantities to HTL CNC. Our team can review manufacturability, support prototype development and provide quotation support for small-batch and OEM custom manufacturing projects.
