Custom Keyboard Case CNC Machining for Aluminum Mechanical Keyboard Housings

Published date: June 12, 2026
Source: HTL CNC

Custom mechanical keyboards, industrial control panels, electronic device housings and premium desktop hardware are becoming more design-driven and more structure-driven at the same time. For many overseas buyers, a keyboard case is no longer only an outer shell. It may need accurate key switch openings, stable mounting points, clean internal cavities, cable or connector windows, controlled edge chamfers, surface finishing and a solid appearance that matches the final product positioning. For these requirements, custom keyboard case CNC machining is a practical manufacturing route for prototype development, small-batch validation and repeat OEM production.

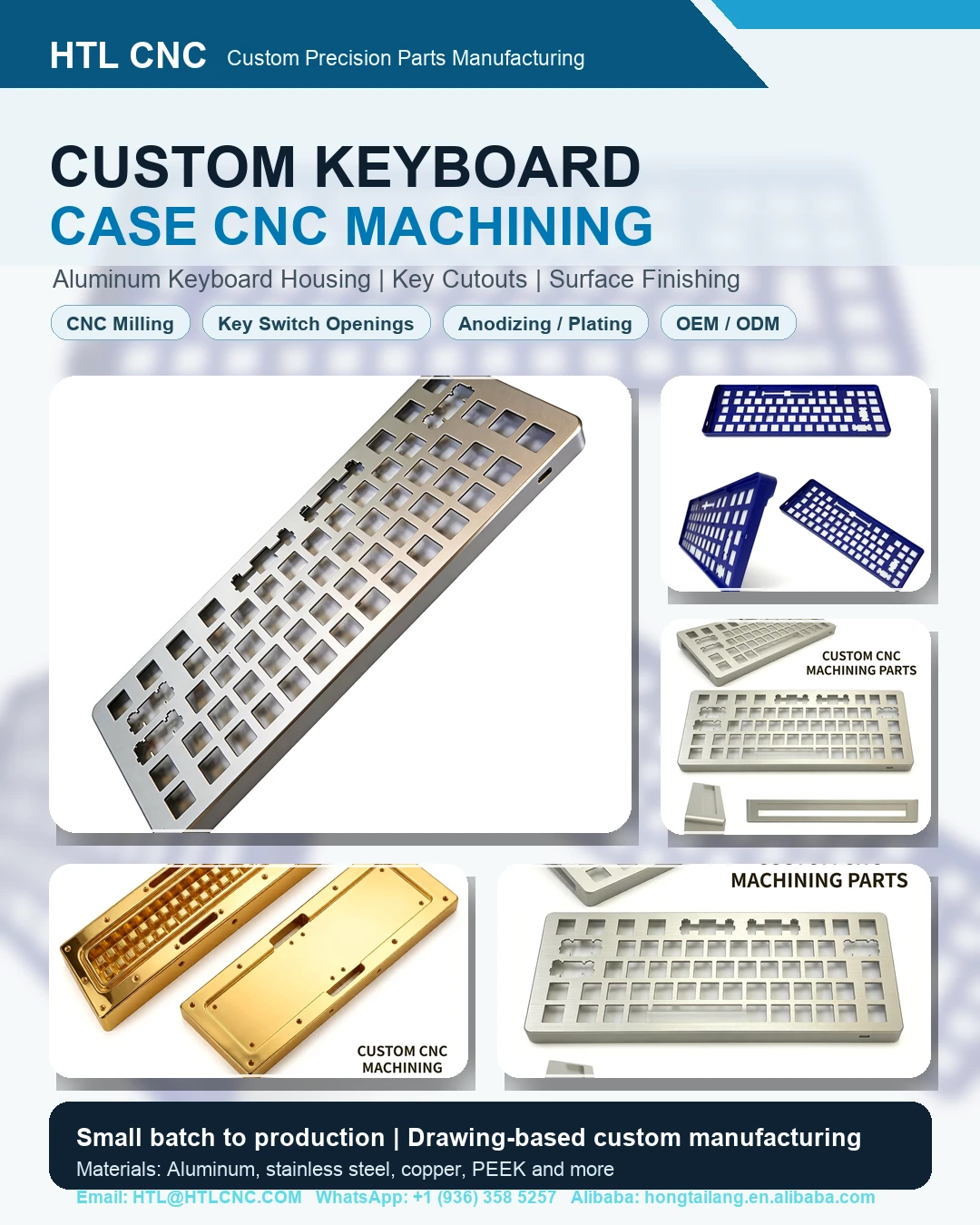

The keyboard housings shown in this industry update include blue anodized aluminum keyboard frames, natural brushed aluminum keyboard cases and gold surface-finished keyboard components. These parts show several typical manufacturing requirements: repeated square key switch cutouts, large flat surfaces, thin surrounding walls, internal pockets, screw holes, connector openings, rounded corners, side windows and cosmetic surfaces. Each feature may look simple, but the complete keyboard case requires stable CNC milling, suitable fixturing, burr control and dimensional inspection.

For custom aluminum keyboard housings, the most visible challenge is often the key switch opening area. A keyboard case may contain dozens of repeated rectangular or square openings. If the opening size, corner radius, spacing or row alignment is inconsistent, the final assembly can face switch fit problems, plate alignment issues or uneven visual gaps. Precision CNC milling helps control repeated openings and edge details, while careful deburring is important because sharp burrs around key cutouts can affect assembly and appearance.

Flatness and stiffness are also important for CNC machined keyboard cases. A large aluminum keyboard shell may look like a simple rectangular component, but long thin surfaces can be affected by material stress, machining sequence, clamping pressure and surface finishing. For buyers developing mechanical keyboard cases, industrial keypads or electronic control panels, it is useful to define critical flatness, wall thickness, screw hole positions, mounting faces and cosmetic surfaces clearly in the drawing. This helps the supplier choose a better machining process and inspection method.

Surface finishing is a major part of keyboard case manufacturing. Aluminum keyboard housings are often requested with black anodizing, blue anodizing, natural anodizing, gold plating, brushing, polishing, sandblasting, laser marking or silk-screen printing. The final visual effect depends not only on the finishing process, but also on the quality of machining marks, tool paths, deburring and surface preparation. For cosmetic CNC parts, the machining supplier should understand which surfaces are visible after assembly and which internal areas can be handled as functional features.

In consumer electronics and custom hardware projects, small-batch flexibility is valuable. A customer may first need several prototype samples to verify layout, switch compatibility, connector position, internal clearance and assembly feel. After design validation, the same project may move to small-batch production or repeat orders. CNC machining supports this development path because it does not require mold tooling at the early stage and can be adjusted according to updated drawings, color options and surface treatment requirements.

From a technical point of view, custom keyboard case CNC machining may involve three-axis milling, four-axis positioning, drilling, tapping, pocket milling, contour milling, chamfering, deburring, surface brushing and anodizing or plating. Some premium keyboard housings also include internal weight cavities, gasket mounting features, screw bosses, countersunk holes, USB connector openings and decorative grooves. These details require the machining program, tool selection and inspection plan to be matched with the customer's CAD model and 2D drawing.

Quality control should cover both dimensional accuracy and appearance quality. For keyboard housings, common inspection points include key switch opening size, hole spacing, screw thread quality, connector window position, outer contour dimensions, flatness, corner radius, chamfer quality, surface scratches and color consistency after finishing. According to the customer's requirement, calipers, height gauges, thread gauges, plug gauges, visual inspection and CMM inspection can be used to confirm important features before shipment.

Search terms used by international buyers may include custom keyboard case CNC machining, aluminum keyboard housing, mechanical keyboard case machining, CNC keyboard case, custom mechanical keyboard parts, aluminum keyboard frame, key switch cutouts, CNC milled keyboard shell, keyboard case anodizing, keyboard case plating, brushed aluminum keyboard case, small batch CNC machining and OEM keyboard parts. HTL CNC publishes these industry updates to help product developers, purchasing teams and hardware engineers connect their drawings with suitable CNC machining solutions.

HTL CNC is a professional precision parts contract manufacturer located in Shenzhen, China. Our factory is equipped with 70 sets of CNC machining and inspection equipment, including five-axis, four-axis and three-axis CNC machining centers, CNC turning and milling compound machines, CNC lathes and three-dimensional inspection equipment. We provide custom CNC machining services for drone components, auto and motorcycle parts, robot components, medical device parts, consumer electronics parts, industrial equipment parts and other non-standard precision components.

For custom keyboard cases, aluminum mechanical keyboard housings, CNC milled keyboard frames, electronic device enclosures, anodized aluminum panels or other drawing-based precision parts, customers can send 2D drawings, 3D files, samples, material requirements, surface treatment notes and expected quantities to HTL CNC. Our engineering team can review manufacturability, support prototype development and provide quotation support for small-batch and repeat production projects.
